AIX - a sample script to start/stop OBIEE

#!/bin/ksh
# Check passed parameters
if [ $# -ne 2 ]
then
  echo "Please provide parameters"
  echo "Parameter 1 - Domain"
  echo "Parameter 2 - start or stop"
  exit
fi

Upgrade - Oracle Database 10.2.0.4 to 11.2.0.3

Oracle Database software uses 2 files (1 and 2) of the 11.2.0.3 patchset.
SQL> select name from v$database;
NAME
---------
TEST11G
SQL> select * from v$version;
BANNER
----------------------------------------------------------------
Oracle Database 10g Enterprise Edition Release 10.2.0.4.0 - 64bi
PL/SQL Release 10.2.0.4.0 – Production
CORE    10.2.0.4.0    Production
TNS for Linux: Version 10.2.0.4.0 – Production
NLSRTL Version 10.2.0.4.0 – Production

11gR2 Rac install on Centos 6.2 without Oracle ASMLib

Oracle ASMlib is available for linux prior to OL6 or RedHat 6. However, starting from 6, you can only use asmlib for UEK kernel.
On Linux, the built in udev is definitely a better solution to handle persistent device naming and permissions.
Without ASMLib, you don't need to worry about the raw disks everytime when there's a kernel update.

What are cvutrace.log.* files

 I was looking to clear some space recently and ran across a 21G directory (<grid_infrastructure_home>/cv/log). Inside there were a lot of files like “cvutrace.log.0_20100720015347″. These files are log files related to a RAC installation. They can safely be deleted.

To stop the files from being generated is add the following at the top of the cluvfy script in the <grid_infrastructure_home>/bin directory.



Windows:
set SRVM_TRACE=false

AIX:
export  SRVM_TRACE=false

An example of logon trigger

By user and by Module:
CREATE OR REPLACE TRIGGER SET_OPTIMIZER_ONLOGIN AFTER LOGON ON DATABASE
DECLARE
uname VARCHAR2(30);
app VARCHAR2(30);
cmmd VARCHAR2(64);
BEGIN
cmmd:='ALTER SESSION SET optimizer_index_cost_adj=20';
uname:=SYS_CONTEXT('USERENV','SESSION_USER');
app := upper(SYS_CONTEXT('USERENV','MODULE'));
IF uname = '*****' and app like 'SQLPLUS.EXE' then
   EXECUTE IMMEDIATE cmmd;
END IF;
EXCEPTION
WHEN OTHERS THEN
NULL;
END;
/

By module only:
CREATE OR REPLACE TRIGGER SET_OPTIMIZER_ONLOGIN AFTER LOGON ON DATABASE
DECLARE
app VARCHAR2(30);
cmmd VARCHAR2(64);
BEGIN
cmmd:='ALTER SESSION SET optimizer_index_cost_adj=20';
app := upper(SYS_CONTEXT('USERENV','MODULE'));
IF app like 'RUNBATCH.EXE' then
   EXECUTE IMMEDIATE cmmd;
END IF;
EXCEPTION
WHEN OTHERS THEN
NULL;
END;
/

Regular Expression in Ultraedit to replace Non ASCII characters

Find Non ASCII characters:
[~^t^r^n -~]+

Find Non ASCII characters following with space and ASCII characters:
[~^t^r^n -~]+ [-,."^?0-9a-z]

To replace the space with CR/LF:
search ^([~^t^r^n -~]+^) ^([-,."^?0-9a-z]+^)
and replace to ^1^p^2

Here ^1 = ^([~^t^r^n -~]+^)
     ^2 = ^([-,."^?0-9a-z]+^)
     space is going to be replaced by ^p(CR/LF)

How to Resume a Failed RMAN Duplicate Due to Missing Backups or ArchiveLogs

It is relatively easy to resume the rman restore and recovery process if it has failed due to missing backups or archivelogs.  You most often see the following error messages complaining that something is missing. RMAN-00571: ===========================================================
RMAN-03002: failure of Duplicate Db command at 05/24/2010 12:52:44
RMAN-03015: error occurred in stored script Memory Script
RMAN-06053: unable to perform media recovery because of missing log
RMAN-06025: no backup of log thread 1 seq 6253 lowscn 1663211060 found to restore

You may have forgotten to copy them over to the same local disk location and/or  failed to restore due to tape issues. After you are sure that you have everything you need in the location RMAN expects them,  shutdown the database that is being duplicated (this is assumed that the controlfile has been restored and the database mounted), start it backup in nomount mode and just rerun the same commands.

RMAN automatically (tested using Oracle RDBMS Enterprise Edition 10.2.0.4) runs through the commands and continues the restore and recovery process from where it left off.

For example: There was a gap in the archive logs in the flash recovery area. I have an alternate archive destination that contains the missing log.
After the first duplicate command failed, I used RMAN to catalog the existence of the  missing log:

CATALOG ARCHIVELOG '/u01/arc/ORACLE_SID/1_6253_DBID.arc';

see MOS Document: How To Catalog Backups / Archivelogs / Datafile Copies / Controlfile Copies [ID 470463.1]  Then shutdown, startup nomount the database being duplicated. Reran the exact same duplicate command:

archive log thread 1 sequence 6251 is already on disk as file /backup/flash_recovery_area/ORACLE_SID/archivelog/2010_05_22/o1_mf_1_6251_5zk173bs_.arc
archive log thread 1 sequence 6252 is already on disk as file /backup/flash_recovery_area/ORACLE_SID/archivelog/2010_05_22/o1_mf_1_6252_5zkhfw99_.arc
archive log thread 1 sequence 6253 is already on disk as file /u01/arc/ORACLE_SID/1_6253_DBID.arc
archive log thread 1 sequence 6254 is already on disk as file /backup/flash_recovery_area/ORACLE_SID/archivelog/2010_05_23/o1_mf_1_6254_5zl68htc_.arc

As you can see from the above output…that it applies the archive logs including the single cataloged piece in the alternate location.  This may save someone else time and trouble when they have the same issue.



TDPO for TSM setup on AIX

1. make sure oracle id has full access to tsm installation folder and files.
2. vi /usr/tivoli/tsm/client/ba/bin64/dsm.sys:
    SErvername your TSM server name, for example, TSM_ORA
    COMMmethod  TCPIP
    TCPPort     1500
    TcpServerAddress tsm server IP
    NODENAME  client_node registered on your TSM server(for example, client_ora)
3. vi /usr/tivoli/tsm/client/ba/bin64/dsm.opt:
    SErvername  your TSM server name, for example, TSM_ORA
4. su - oracle
5. ln -s /usr/lib/libobk64.a $ORACLE_HOME/lib/libobk.a
6. vi /usr/tivoli/tsm/client/oracle/bin64/tdpo.opt:
    DSMI_ORC_CONFIG    (location of dsm.opt, for example, /usr/tivoli/tsm/client/oracle/bin64/dsm.opt)
    DSMI_DIR           (location for dsm.sys,for example, /usr/tivoli/tsm/client/oracle/bin64)
    TDPO_FS            (Space name for backup on TSM, for example, adsmorc）
    TDPO_NODE      (Nodename for client, usually the servername of client)
    TDPO_OWNER   (TDPO owner, for example, oracle)
    TDPO_PSWDPATH      (tdpoconf password file location)
    DSMI_LOG          (Log file location, for example, /home/oracle)
7. tdpoconf password -tdpo_optfile=<full path of tdpo.opt file>
    It will create a password file TDPO.nodename
    You should get the password from the TSM admin
8. ln -s /usr/tivoli/tsm/client/lang/EN_US /usr/tivoli/tsm/client/oracle/bin64/EN_US
9. make sure user oracle has full access to all files under /usr/tivoli/tsm/client/oracle/bin64
10. test: $ORACLE_HOME/bin/sbttest test
    if you see:
    The sbt function pointers are loaded from libobk.a(shr.o) library.
    -- sbtinit succeeded
    Means the tdpo for oracle are configured successfully.

ORA-20005: object statistics are locked (stattype = ALL) after database clone

After database clone or datapump import, you may get the error: "ORA-20005: object statistics are locked (stattype = ALL)":
SQL> exec dbms_stats.gather_table_stats(ownname=>'cisadm',tabname=>'c0_installation',ESTIMATE_PERCENT => 30);
BEGIN dbms_stats.gather_table_stats(ownname=>'cisadm',tabname=>'c0_installation',ESTIMATE_PERCENT => 30); END;

*
ERROR at line 1:
ORA-20005: object statistics are locked (stattype = ALL)
ORA-06512: at "SYS.DBMS_STATS", line 13437
ORA-06512: at "SYS.DBMS_STATS", line 13457
ORA-06512: at line 1

Check the value of ESTIMATE_PERCENT:

The default value of estimate is AUTO_SAMPLE_SIZE.

10g

SQL> select
DBMS_STATS.GET_PARAM ('AUTOSTATS_TARGET'),
DBMS_STATS.GET_PARAM ('CASCADE'),
DBMS_STATS.GET_PARAM ('DEGREE'),
DBMS_STATS.GET_PARAM ('ESTIMATE_PERCENT'),
DBMS_STATS.GET_PARAM ('METHOD_OPT'),
DBMS_STATS.GET_PARAM ('NO_INVALIDATE'),
DBMS_STATS.GET_PARAM ('GRANULARITY')
from dual;

11g

SQL> select
DBMS_STATS.GET_PREFS ('AUTOSTATS_TARGET'),
DBMS_STATS.GET_PREFS ('CASCADE'),
DBMS_STATS.GET_PREFS ('DEGREE'),
DBMS_STATS.GET_PREFS ('ESTIMATE_PERCENT'),
DBMS_STATS.GET_PREFS ('METHOD_OPT'),
DBMS_STATS.GET_PREFS ('NO_INVALIDATE'),
DBMS_STATS.GET_PREFS ('GRANULARITY'),
DBMS_STATS.GET_PREFS ('PUBLISH'),
DBMS_STATS.GET_PREFS ('INCREMENTAL'),
DBMS_STATS.GET_PREFS ('STALE_PERCENT')
from dual;

GATHER_STATS_JOB

To check the job status in 10g:
select * from dba_scheduler_jobs where job_name = 'GATHER_STATS_JOB';
select * from dba_scheduler_job_run_details where job_name = 'GATHER_STATS_JOB';
select * from dba_scheduler_job_log where job_name = 'GATHER_STATS_JOB';

To Check the scheduler for this job:

select OWNER,JOB_NAME,STATE,SCHEDULE_NAME from dba_scheduler_jobs where job_name='GATHER_STATS_JOB';

SELECT * FROM DBA_SCHEDULER_WINGROUP_MEMBERS;

If the state is not "Scheduled":
EXEC DBMS_SCHEDULER.ENABLE ('GATHER_STATS_JOB');
if the window is not enabled:
EXEC DBMS_SCHEDULER.ENABLE ('SYS.WINDOWNAME');

You can also create the job on different user and execute it:
BEGIN
dbms_scheduler.create_Job (job_name=>'Gather_Stats_Job',
job_type=>'PLSQL_BLOCK',
job_action=>'BEGIN Dbms_Stats.gather_database_stats(cascade=>true); end;',
start_date => sysdate,
repeat_interval => 'freq=daily',
enabled=>true);
end;
/

BEGIN
DBMS_SCHEDULER.RUN_JOB(
job_name => 'GATHER_STATS_JOB'
);
END;
/

To disable gather_stats_job in 10g:

BEGIN
DBMS_SCHEDULER.DISABLE('GATHER_STATS_JOB');
END;
/

To drop the job, login as creator and run:

EXEC DBMS_SCHEDULER.DROP_JOB (JOB_NAME=>'GATHER_STATS_JOB', force => true);

oradebug

In Oracle database version 9i there is no way to determine the IP address through a database view. The only way to determine this IP address is with the oradebug command (Please keep in mind oradebug is not a supported product from Oracle, so if there are problems/crashes you are on your own). The oradebug ipc command creates a trace file. The example shows the process:
 SQL> oradebug setmypid
  SQL> oradebug ipc
  SQL> oradebug tracefile_name
The last command will show the name of the created trace file. The next step is opening the trace file and looking for the string SKGXPCTX. The following is a typical example.

SKGXPCTX: 0xcd1e730 ctx
 admno 0x7a0be402 admport:
 SSKGXPT 0xcd1e884 flags SSKGXPT_READPENDING     info for network 0
         socket no 8     IP 140.87.79.67         UDP 9152
         sflags SSKGXPT_WRITESSKGXPT_UP
         info for network 1
The cluster interconnect IP address is shown in bold. In the example above
it is 140.87.79.67.

Modify the attribute AUTO_START to “always”

With Oracle 11.2 database auto start policy in the clusterware is restore, which means that clusterware will remember the last state of the database.  If the database was stopped normally then on the next restart of clusterware it won’t be started. Otherwise if the server crashes or by some reason the OS is rebooted then clusterware will start the database because last state was ONLINE (running).

hibernate.jdbc.fetch_size and hibernate.jdbc.batch_size

Two important settings for hibernate java application, affecting hibernate CRUD performance.
C = create, R = read, U = update, D = delete

Fetch Size determines when JDBC Statement read data, how many records are going to be read per fetch.
Recommend setting for Oralce JDBC application:
hibernate.jdbc.fetch_size 100
hibernate.jdbc.batch_size 25

Disable Microsoft Office Upload Center

For starters, if you don't want it, don't run Microsoft SharePoint Workspace 2010 (what used to be called Groove). Workspace also loads the Upload Center, even if you simply start it, then cancel before doing anything. It also sets some values in the Windows registry that cause Upload Center to load again every time you restart Windows.

Windows DBConsole internal stop. No OC4J admin passwd hence hard stop



Enterprise manager cannot be started. The status shows dbconsole is already started:

C:\>emctl status dbconsole

Oracle Enterprise Manager 11g Database Control Release 11.2.0.1.0

Copyright (c) 1996, 2010 Oracle Corporation.  All rights reserved.

https://JDEORA01:5500/em/console/aboutApplication

Oracle Enterprise Manager 11g is running.

------------------------------------------------------------------

Logs are generated in directory C:\APP\ORACLE\product\11.2.0\se1/jdeora01_e1prod/sysman/log

Install EM grid 11.1.0.1.0 on Linux

• Software

Downloads the following software:

Enterprise Linux Release 5 Update 5 for x86_64 (64 Bit) - DVD (3.3G)

Java SE Development Kit 6u18 (76M)

Oracle Database 11g Release 2 for Linux 64-bit (2G)

opatch - Latest version (26M)

Oracle WebLogic Server 11gR1 (10.3.2) - Package Installer (Generic) (1G)

(There’s a known issue with installing Enterprise Grid Control on Weblogic 10.3.3)

Enterprise Manager Grid Control (4.1G)

Manually configure the Oracle EM dbconsole

To Create EM Dbconsole:

$ emca -repos create
$ emca -config dbcontrol db

or$emca -config dbcontrol db -repos create

Toad hangs when retrieving User Script

When using the Schema Browser, user selects select a User and the User Script tab. Toad hangs (or taking a long time) on a 10g db. When user uses 9.2.0.5 database, User script works as it should.

Does not appear to matter which user is selected . Toad does not return script and it hangs. Changing the Optimize hint does not address issue.

Also, right-clicking a user then clicking Create Script does not work no matter to File, to Screen, or to Clipboard.

Cannot connect to database from OBIEE 2.4 BI Admin Tool

If you have connection issue, modify bi_init.bat under BI install folder\oraclebi\orahome\bifoundation\server\bin, replace all ORACLE_HOME to OBIEE_HOME, and add new ORACLE_HOME for the actual oracle installation path:

@echo off
set OBIEE_HOME=C:\Program Files\Oracle Business Intelligence Enterprise Edition Plus Client\oraclebi\orahome
set ORACLE_HOME=D:\oracle\product\11.2.0.3\owb
set ORACLE_INSTANCE=C:\Program Files\Oracle Business Intelligence Enterprise Edition Plus Client\oraclebi\orainst
set ORACLE_BI_APPLICATION=coreapplication
rem call %ORACLE_INSTANCE%\bifoundation\OracleBIApplication\%ORACLE_BI_APPLICATION%\setup\user.cmd
if NOT "%1" == "" set COMPONENT_NAME=%1
set PATH=%OBIEE_HOME%\bifoundation\server\bin;%OBIEE_HOME%\bifoundation\web\bin;%OBIEE_HOME%\bin;C:\Program Files\Oracle Business Intelligence Enterprise Edition Plus Client\jre\bin;%ORACLE_HOME\bin%;%windir%;%windir%\system32;%PATH%
if NOT "%2" == "" %2

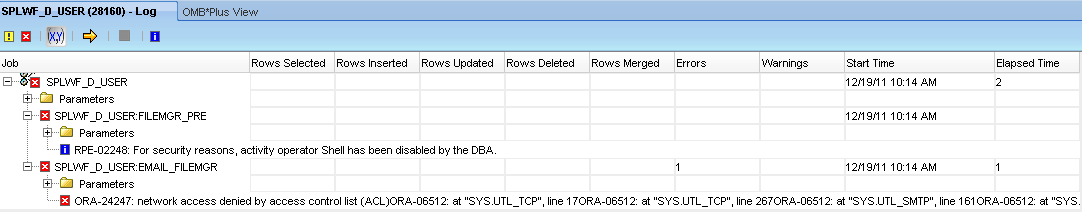

Oracle Workflow ORA-24247

If you see the following errors:

ORA-24247:Network access denied by access control list(ACL) ORA-06512 at......



ORA-29532 when starting OWB Service

Run $ORACLE_HOME/owb/rtp/sql/start_service.sql with OWBSYS user.

If you have the following error:

Not Available

Diagnostics:

service startup failure using command "$ORACLE_HOME/owb/b

in/unix/run_service.sh -manual 1 $ORACLE_HOME OWBSYS 10.8

4.80.186:1521:bidev" reason ORA-29532: Java call terminated by uncaught Java ex

ception: java.io.IOException: service early exit: code=1 : err=JVMJ9VM015W Init

ialization error for library j9gc23(2): Failed to instantiate heap; 768M reques

ted

Could not create the Java virtual machine.

: out=

please invoke [owbhome]/owb/rtp/sql/service_doctor.sql for more information

PL/SQL procedure successfully completed.

[nQSError: 46029] for OBIEE 2.3.2

If OBIEE is unabled to be started because of Error: [nQSError: 46029] Failed to load the DLL $BIHOME/server/Bin64/libnqsdbgatewayoci10g64.so. Check if 'Oracle OCI 10G' database client is installed.

• Make sure export LD_LIBRARY_PATH=$ORACLE_HOME/lib/ and export SHLIB_PATH=$ORACLE_HOME/lib is in the profile.

• Also make changes in $BIHOME/setup/user.sh:

ORACLE_HOME=/orasw/app/oracle/product/11.2.0.3
export ORACLE_HOME
TNS_ADMIN=/orasw/app/oracle/product/11.2.0.3/network/admin
export TNS_ADMIN
PATH=$ORACLE_HOME/bin:/opt/bin:$PATH
export PATH
LIBPATH=$ORACLE_HOME/lib:$LIBPATH:/opt/j2se/jre/lib/sparc
export LIBPATH

OBIEE Catalog Manager Cannot be launched

When getting Java error from OBIEE Catalog Manager lauching:

Modify C:\OracleBI\web\catalogmanager\catalogmanager.ini:

-Xmx1440M
Change to-Xmx512M

Purging Cache via OBIEE analytics page

1. Log into OBIEE using an Admin account (as weblogic)
2. a) Go to Administration Page –

1. Select “Issue SQL” under “Maintenance and Trouble Shooting”

gather_system_stats

SQL> exec dbms_stats.gather_system_stats (gathering_mode => 'noworkload');

PL/SQL procedure successfully completed.

SQL> select sname, pname, pval1 from sys.aux_stats$;

Resize undo table space

1. define a new temporary undo tablespace
CREATE UNDO TABLESPACE "UNDOTBS2" DATAFILE '/ccbprod/oradata/ccbprod/UNDOTBS2.dbf' SIZE 100M
AUTOEXTEND ON NEXT 10240K MAXSIZE 32767M ;

Convert UNIX to DOS format using sed command

Type the following command if you are using bash shell:
$ sed 's/$'"/`echo \\\r`/" input.txt > output.txt

Convert DOS newlines (CR/LF) to Unix format using sed command
If you are using BASH shell type the following command (press Ctrl-V then Ctrl-M to get pattern or special symbol)
$ sed 's/^M$//' input.txt > output.txt

NCARGS value configuration for AIX 5.1

NCARGS value configuration (5.1.0)
In AIX 5L Version 5.1, the option has been added to allow the super user or
any user belonging to the system group to dynamically change the value of
the NCARGS parameters. In previous releases of AIX, these values were
permanently defined as 24576, which resulted in a problem similar to that
shown below when a large number of arguments are parsed to a command:
# rm FILE*
ksh: /usr/bin/rm: 0403-027 The parameter list is too long.

The value of NCARGS can be increased to overcome this problem. The value
can be tuned anywhere within the range of 24576 to 524288 in 4 KB page
size increments. To display the value, use the following command.

Typical production init file (10g)

#####################################################################
# Common parms
#####################################################################
ifile = ?/dbs/orabase-dg.ora
#####################################################################
# Structural Parms
#####################################################################
db_domain = psoug
db_block_size = 8192
db_writer_processes = 8

Thread 1 cannot allocate new log

Sometimes, you can see in your alert.log file, the following corresponding
messages:


  Thread 1 advanced to log sequence 248
    Current log# 2 seq# 248 mem# 0: /prod1/oradata/logs/redologs02.log

  Thread 1 cannot allocate new log, sequence 249
  Checkpoint not complete

Resize Redo log

If the redo logs need to be resized, the following steps can be taken.
1.  Create new log group members with the following command:

ALTER DATABASE ADD LOGFILE
GROUP 4 (    '/ccbprod/oradata/ccbprod/REDO04A.LOG',
        '/ccbprod/oradata/ccbprod/REDO04B.LOG') SIZE 1280M reuse,
GROUP 5 (    '/ccbprod/oradata/ccbprod/REDO05A.LOG',
        '/ccbprod/oradata/ccbprod/REDO05B.LOG') SIZE 1280M reuse,
GROUP 6 (    '/ccbprod/oradata/ccbprod/REDO06A.LOG',
        '/ccbprod/oradata/ccbprod/REDO06B.LOG') SIZE 1280M reuse;

Resize Redo log for RAC

In RAC, you have seperate log groups for each instance (called threads). You can see which group belongs to which thread by querying v$log. When you add new loggroups, you specify which thread it should belong to. The syntax is

ALTER DATABASE ADD LOGFILE THREAD 1 GROUP 5 ('firstlocation','secondlocation') SIZE 1280M;

Enable/Disable Archive logs in a RAC environment

on node 1:
set oracle_sid=racdb1
-------------Noarchivelog
sqlplus / as sysdba
alter system set cluster_database=false scope=spfile sid='racdb2';



quit

Configure rsh for CentOS
1. check if rsh-server is installed:
[root@rac1 ~]# rpm -qa|grep -i ^rsh-server

2. make sure no disable = no in /etc/xinetd.d/rlogin  :

1.  [root@rac1 ~]# cat /etc/xinetd.d/rlogin

2.  # default: on

3.  # description: rlogind is the server for the rlogin(1) program. The server

4.  # provides a remote login facility with authentication based on

5.  # privileged port numbers from trusted hosts.

6.  service login

7.  {disable = no

8.  socket_type = stream

9.  wait = no

10. user = root

11. log_on_success += USERID

12. log_on_failure += USERID

13. server = /usr/sbin/in.rlogind}

Configure for oracle Single Instance install with ASM on centos

Create VM:

Oracle Checkpoint

A checkpoint performs the following three operations:
Every dirty block in the buffer cache is written to the data files. That is, it synchronizes the datablocks in the buffer cache with the datafiles on disk.
It's the DBWR that writes all modified databaseblocks back to the datafiles.

To change DBIO_EXPECTED for EM

 SELECT parameter_value,is_default FROM dba_advisor_def_parameters WHERE advisor_name = 'ADDM' AND parameter_name ='DBIO_EXPECTED';

EXECUTE DBMS_ADVISOR.SET_DEFAULT_TASK_PARAMETER('ADDM', 'DBIO_EXPECTED', 20000);

select * from aux_stats$;

EXECUTE IMMEDIATE option for Dynamic SQL and PL/SQL

EXECUTE IMMEDIATE is the replacement for DBMS_SQL package from Oracle 8i onwards. It parses and immediately executes a dynamic SQL statement or a PL/SQL block created on the fly. Dynamically created and executed SQL statements are performance overhead, EXECUTE IMMEDIATE aims at reducing the overhead and give better performance. It is also easier to code as compared to earlier means. The error messages generated when using this feature are more user friendly. Though DBMS_SQL is still available, it is advisable to use EXECUTE IMMEDIATE calls because of its benefits over the package.

To re-create "enq: RO – fast object reuse" problem

create 3 sessions.

Session 1：

SQL> select count(*) from mchbas;

  COUNT(*)
----------
   5943314

Drop asm disk after moving ocr



CREATING A PHYSICAL STANDBY ON ASM 11gR2

Task 1: Gather Files and Perform Back Up
1. On the primary node, create a staging directory. For example: [testasm] /home/oracle >mkdir -p /u02/stage
2. Create the same exact path on one of the standby hosts: [testdb] /home/oracle >mkdir -p /u02/stage
3. On the primary node, connect to the primary database and create a PFILE from the
SPFILE in the staging directory. For example: SQL> create pfile='/u02/stage/inittestasm.ora' from spfile;
File created.
SQL>

Oracle 11gR2 RAC on Windows 2008 using VMWARE

Oracle 11gR2 RAC on Windows 2008 R2 using VMWARE
Network Configuration

Name the network connection as “public” and “private”

Amend the C:\windows\system32\drivers\etc\hosts file to contain the following information.
127.0.0.1       localhost.localdomain   localhost
# Public
192.168.96.3   rac1.localdomain        rac1
192.168.96.4   rac2.localdomain        rac2
#Private
192.168.40.2   rac1-priv.localdomain   rac1-priv
192.168.40.3   rac2-priv.localdomain   rac2-priv
#Virtual
192.168.96.111   rac1-vip.localdomain    rac1-vip
192.168.96.112   rac2-vip.localdomain    rac2-vip
# SCAN
192.168.96.201   rac-scan.localdomain rac-scan

Addition changes:First, ensure the public interface is first in the bind order:

Start and stop owb service

1. Stop:

     local_service_login.sh -closedown $OWB_ORACLE_HOME

(Case sensitive)

How to find Cluster name on RAC instance

Soemtimes you need to check your cluster name on your RAC  instance. Here is the steps:

Move index or table to another tablespace

A) Tip :- How to move index  from one tablespace to another ?
B) Tip :- How to move Table from one tablespace to another ?

Adding and removing disks in ASM

Adding and removing disks in ASM

A first for me. I had seen asm in the past but never had hands on experience with it. A client needed some disks moved from 1 diskgroup to the other and so started my journey into ASM. :)
